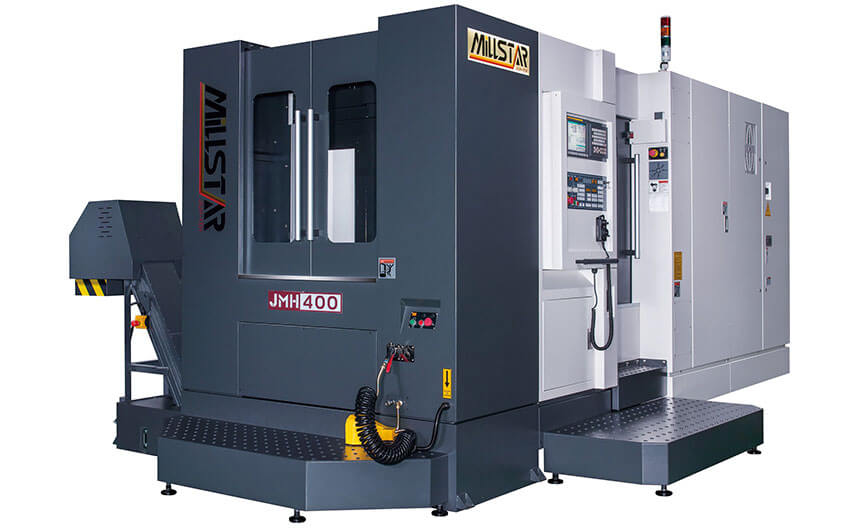

JMH400
- The major structural parts are ladle and box type integrated construction to fully overcome the cutting "Blind Rigidity" problem.
- Three axes are mounted with heavy duty roller type linear guide ways, featuring heavy load resistance and rapid traverse.
- The structural parts are symmetrical construction combined with "V" shape rib reinforcement that ensures they will remain deformation-free even after a long time.
- The structural parts are manufactured from high quality cast iron, tempered for stress relier.
- The advanced finite element andlysis software is applied for simulating structural stress. This assures the best possible machine rigidity, stability and dampening capacity.
| Model | JMH400 | |
|---|---|---|
| TARVEL | Y axis travel | 630mm |
| Z axis travel | 630mm | |
| Spindle center to work table surface | 50~680mm | |
| Spindle nose to work table center | 130~760mm | |
| TABLE | Table surface to floor | 1100mm |
| Table size | (400 X 400)X 2pcs | |
| T-slot/Bolt Spec | 24-M10 X P1.5 X20 mm | |
| Max. loading | 400 kg | |
| Divide angle | 0.001o | |
| SPINDLE | Spindle taper | BT-40 |
| Method of spindle | DDS | |
| Spindle diameter | Φ70 | |
| Spindle speed | 10000 rpm | |
| FEEDRATE | Spindle motor(cont/30 min) | 15/18.5 kw(α15) |
| 3-axes cutting feederate | 1~10000 mm/min | |
| 3-axes rapid feederate | 36(48 opt.) | |
| ATC | 3-axes min. setting unit | 0.001 mm |
| Tool selection | 40 pcs(60 opt.) | |
| Max. tool diameter X length | Φ80 X 300 | |
| Max. tool weight | 10 kg | |
| Tool shank | P40T-1 type | |
| Tool change time(t-t) | 1.6(60 HZ) | |
| APC | Number of pallets | 2 pcs |
| Method of pallet change | ROTARY | |
| Pallet change time | 8 SEC | |
| OTHER | Floor space(L X W X H) | 4713 X 3056 X 2735 mm |
| Machine weight(N.W/G.W) | 11500/13500 kg | |
| Power capacity require | 40 KVA | |
| Shipment Require(Suggest) | 40” HQ | |
| Standard Accessories: | Optional Accessories: |
| 1. Rotary type automatic pallet changer | 1. 0.001o or 5o indexing rotary table (JMH-400, 0.001o std.) |
| 2. 1o indexing rotary table(JMH-400 std. 0.001o) | 2. 60,90,120 tools chain type magazine |
| 3. Mitsubishi or Fanuc control | 3. BT-40, 10,000~24,000 rpm direct drive(JMH-400/JMH-500) |
| 4. 40 tools chain type ATC | 4. BT-50, 8,000~12,000 rpm direct drive(JMH-500) |
| 5. BT-40,JNH-400/JMH-500(40):10,000 rpm direct drive | 5. BT-50, 8,000 or 10,000 rpm direct drive (JMH-630~JMH-1000) |
| 6. BT-50,JMH-500:6,000 rpm direct drive | 6. Coolant through spindle(CTS-20/30/50/70 bar) |
| 7. BT-50,JMH-630/800/1000:6,000 rpm Japan Gear head | 7. 3 axes linear scales |
| 8. Rigid roller type linear guide way system | 8. Oil skimmer |
| 9. Spindle curtain coolant | 9. Air conditioner for electrical cabinet |
| 10. Spindle oil cooler | 10. Automatic tool length measuring device |
| 11. Heat exchanger for electrical cabinet | 11. Automatic workpiece measuring device |
| 12. 3 areas powerful chip flushing system | 12. Coolant through tool holder 20/50 bar (without tool holder) |
| 13. Automatic lubrication system | 13. CE Standard |
| 14. Fully enclosed splash guard | 14. SIEMENS,HEIDENHAIN,FAGOR controller |
| 15. Chain type chip conveyor with cart | 15. Pallet automation system(Flexible Manufacture System |
| 16. Leveling bolts and pads | 16. High torque Gear box(JMH-400/JMH-500) |
| 17. Tool box with tools | 17. Ball screw coolant system(JMH-630/ MH-800/JMH-1000 std.) |
| 18. Operation and maintenance manual | |
| 19. Transformer(Export only) and Export packing |
